John Deere SPRING GX23594
£11.35 inc VAT
Product code: JD-GX23594
In stock
Delivery & returns
Delivery options and costs are shown at checkout. Eligible non-defective items can be returned within 14 days when complete and in their original packaging. Read the returns policy.
Part compatibility & support
Check the product code, model and serial number before ordering. If you are unsure, call 01844 277 680 and our team will help.
Read more ↡
Loading...
Description
Product Overview
- Part Number: GX23594
- Type: Extension Spring

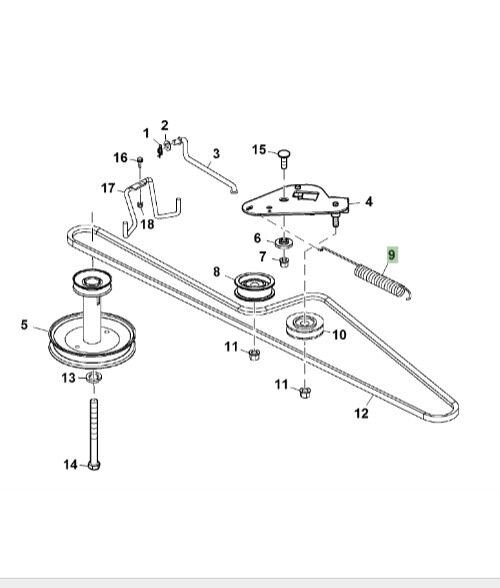

- Function: Provides tension and return force for the traction drive belt system
- Wire Diameter: 2.03 mm
- Free Length: 204.88 mm
- Outer Diameter: 20.90 mm
- Spring Rate: 0.83 mm
- Material: High-quality steel with a painted coating for corrosion resistance
✅ Compatible Models
This spring fits a wide range of John Deere lawn tractors, including:
- D Series: D100–D170
- E Series: E100–E180
- LA Series: LA105–LA175 (after serial number 200,001)
- S Series: S100–S240
- X Series: X105–X167
📦 Applications
- Used in the traction drive system to maintain belt tension
- Helps prevent belt slippage and ensures consistent drive performance
